Bolt removal/installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness to the magnetic clutch connector.

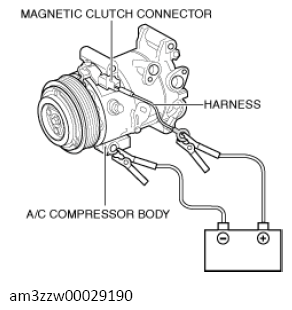

    G13559190Courtesy of MAZDA MOTORS CORP.
  2. Connect the battery (+) cable to the harness.
  3. Connect the battery (-) cable to the A/C compressor body.
    NOTE:
    • Energize the magnet clutch and fix the A/C compressor pulley and the pressure plate.
  4. Wrap the drive belt, which is no longer of use, tightly around the A/C compressor pulley.

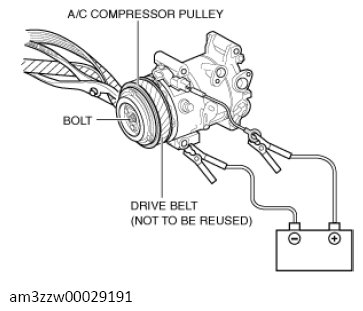

    G13559191Courtesy of MAZDA MOTORS CORP.
  5. Hold the drive belt in place with pliers.
  6. Remove/installation the bolt.
