Rear Differential Mount Rubber (Rear): Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Support the rear differential component using a jack.

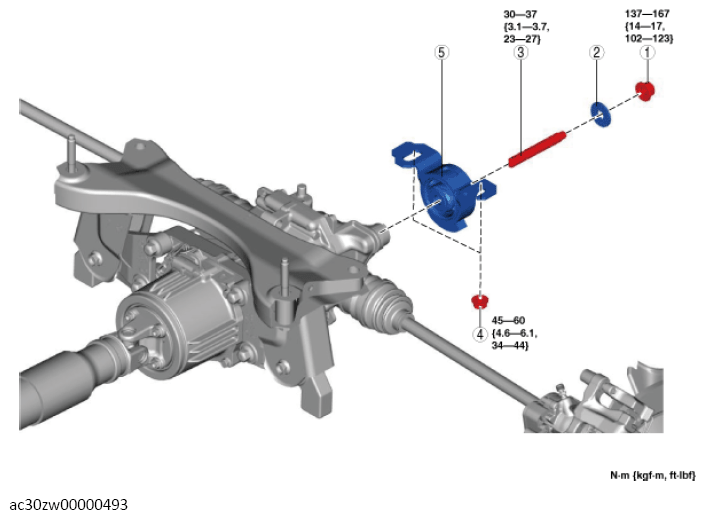

- Remove in the order shown in the illustration.
- Install in the reverse order of removal.
COMPONENT DESCRIPTION
| 1 | Nut (See STUD BOLT, WASHER, AND NUT INSTALLATION NOTE .) |
| 2 | Washer (See STUD BOLT, WASHER, AND NUT INSTALLATION NOTE .) |
| 3 | Stud bolt (See STUD BOLT, WASHER, AND NUT INSTALLATION NOTE .) |
| 4 | Rear differential mount rubber (rear) installation nut |
| 5 | Rear differential mount rubber (rear) |
