Rear Differential Mount Rubber (Front): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Support the rear differential component using a jack.

Courtesy of MAZDA MOTORS CORP.
Remove in the order shown in the illustration.
Install in the reverse order of removal.

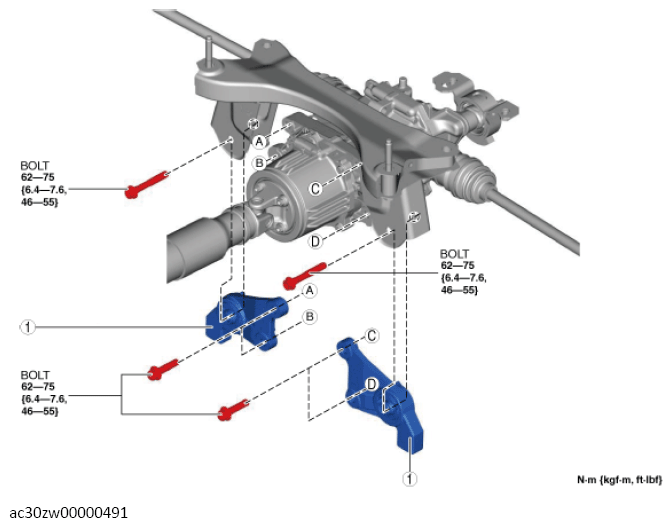

Fig 1: Rear Differential Mount Rubber Components With Torque Specification (Front)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear differential mount rubber (front) (See REAR DIFFERENTIAL MOUNT RUBBER (FRONT) INSTALLATION NOTE .)
