Rear Differential Mount Rubber (Front) Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

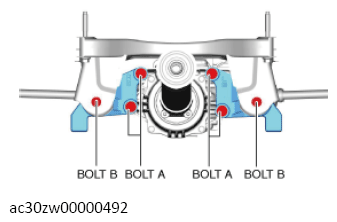

  1. Temporarily tighten bolts A and B.
    G13558088Courtesy of MAZDA MOTORS CORP.
  2. Remove the transmission jack.
  3. Shake the rear differential forward and back/left and right to improve the installation fit of the rear differential.
  4. Completely tighten bolts in the order of A and B.
