Exhaust System Insulator Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor under cover No. 1 (RH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION (US) .)
  4. Remove the exhaust system insulator in the order shown in the illustration.
  5. Install in the reverse order of removal.

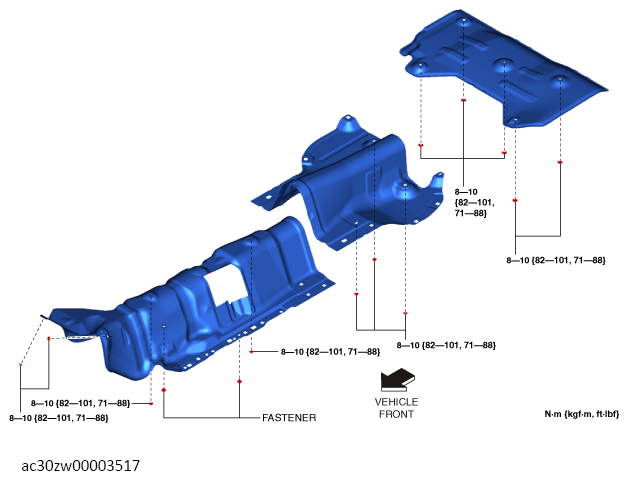

Fig 1: Insulator Components With Torque Specification (AWD)
G13557337Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Insulator (rear)
(See INSULATOR (REAR) INSTALLATION NOTE .)
2 Insulator (front)
(See INSULATOR (FRONT) INSTALLATION NOTE .)
3 Insulator (middle)
(See INSULATOR (MIDDLE) INSTALLATION NOTE .)
