Insulator (middle) installation note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

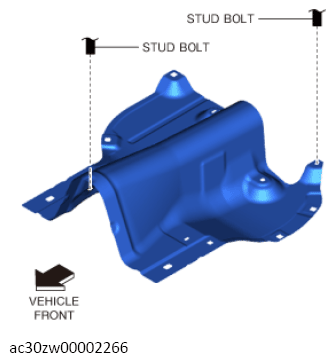

- Align the stud bolts shown in the illustration with the insulator (middle) and install.
2WD
 Courtesy of MAZDA MOTORS CORP.
|
AWD
 Courtesy of MAZDA MOTORS CORP.
|
- Tighten the nuts to the specified torque.
