Vanity Mirror Illumination Inspection
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the vanity mirror illumination. (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION .)
- Apply battery positive voltage to vanity mirror illumination terminal A, and connect the ground to terminal C.
- If not as indicated in the table, replace the vanity mirror illumination. (See VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION .)
- Remove the Sun visor. (See SUN VISOR REMOVAL/INSTALLATION .)

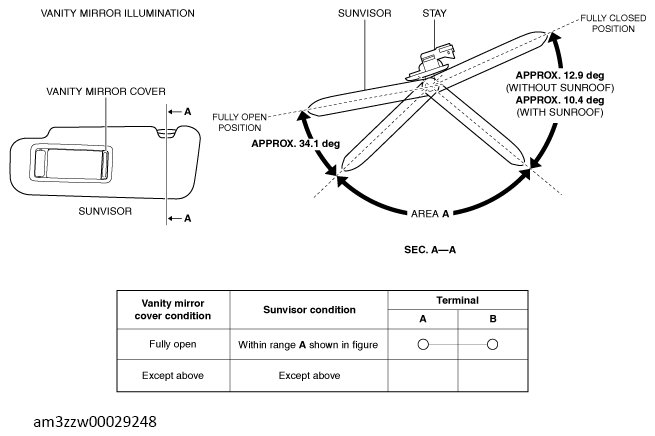

- Verify that the vanity mirror position.
- If not as indicated in the table, replace the Sun visor. (See SUN VISOR REMOVAL/INSTALLATION .)
