License Plate Light Short-Cord Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Door lock switch (liftgate) (with door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION (US) .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    6. Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION .)
    7. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
    8. Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION .)

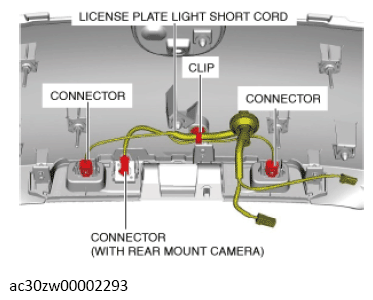

  3. Remove the clip.
    G13560878Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connectors.
  5. Remove the license plate light short cord.
  6. Install in the reverse order of removal.
  7. Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360° VIEW MONITOR SYSTEM AIMING .)
