Instrumentation/Driver Info. Location Index (Us): Interior

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

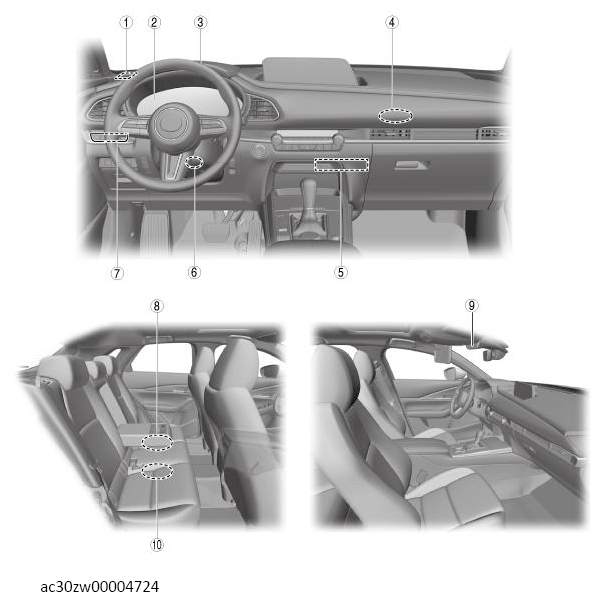

COMPONENT DESCRIPTION

1	TEL antenna No. 2 (with telematics communication system) (See TEL ANTENNA REMOVAL/INSTALLATION (US) .) (See TEL ANTENNA INSPECTION (US) .)
2	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION (US) .)
3	Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION (US) .) (See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
4	TEL antenna No. 1 (with telematics communication system) (See TEL ANTENNA REMOVAL/INSTALLATION (US) .) (See TEL ANTENNA INSPECTION (US) .)
5	Telematics communication unit (with telematics communication system) (See TELEMATICS COMMUNICATION UNIT REMOVAL/INSTALLATION .) (See TELEMATICS COMMUNICATION UNIT INSPECTION .) (See TELEMATICS COMMUNICATION UNIT INITIAL SETTING .) (See ACTIVATING REMOTE CONTROL BY SMART PHONE .)
6	Front Notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .) (See NOTIFICATION AND WARNING SPEAKER INSPECTION .)
7	Parking sensor OFF switch (with parking sensor system) (See PARKING SENSOR OFF SWITCH REMOVAL/INSTALLATION .) (See PARKING SENSOR OFF SWITCH INSPECTION .)
8	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .) (See INDICATOR UNIT INSPECTION .)
9	Fuel gauge sender unit (main) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION (US) .) (See FUEL GAUGE SENDER UNIT INSPECTION (US) .)
10	Fuel gauge sender unit (sub) (AWD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION (US) .) (See FUEL GAUGE SENDER UNIT INSPECTION (US) .)
