Intake-Air System Location Index
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

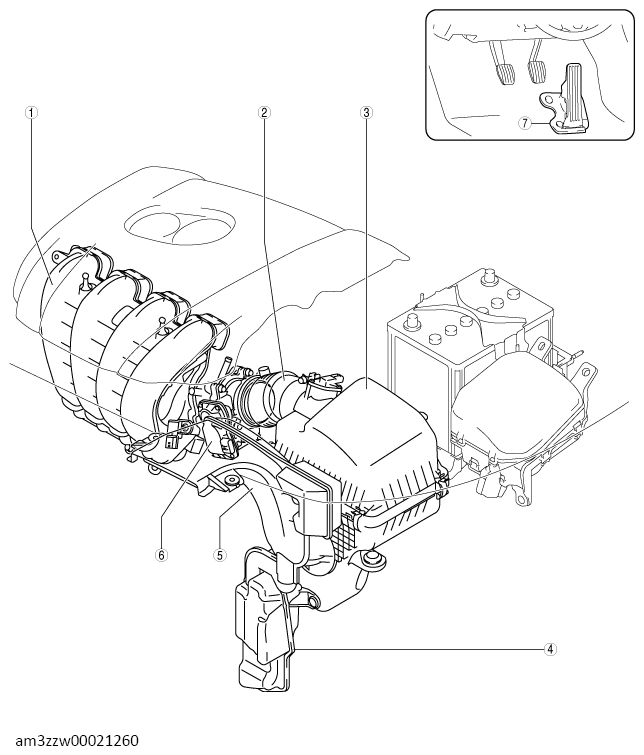

COMPONENT DESCRIPTION
| 1 | Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See INTAKE MANIFOLD VACUUM INSPECTION .) |
| 2 | Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) |
| 3 | Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT INSPECTION .) |
| 4 | Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) |
| 5 | Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) |
| 6 | Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See THROTTLE BODY INSPECTION .) |
| 7 | Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .) |
