Accelerator Pedal Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove in the order indicated in the table.

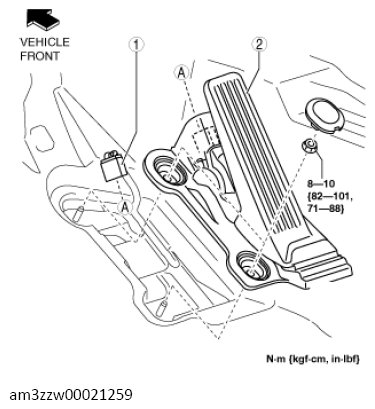

Fig 1: Accelerator Pedal Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 APP sensor connector

2 Accelerator pedal
Install in the reverse order of removal.

1	APP sensor connector
2	Accelerator pedal
