Windshield Wiper Blade Rubber Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper blade. (See WINDSHIELD WIPER BLADE REMOVAL/INSTALLATION .)

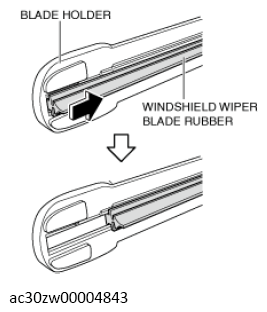

  2. Pull the windshield wiper blade rubber in the direction of arrow and slide it to a position where the blade holder groove can be checked.
    G13561003Courtesy of MAZDA MOTORS CORP.

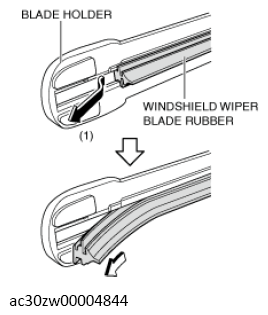

  3. Pull the end of the windshield wiper blade rubber from the blade holder groove in the direction of arrow (1) and remove the windshield wiper blade rubber from the blade holder.
    G13561004Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Verify that the windshield wiper blade rubber is installed correctly.
