Rear Wiper Arm: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

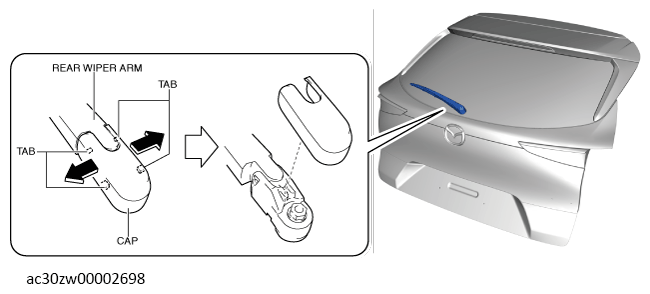

Pull the cap in the direction of the arrows shown in the illustration and detach the cap tabs from the rear wiper arm.

Courtesy of MAZDA MOTORS CORP.
Remove the cap.
Remove the stopper. (with stopper)

Courtesy of MAZDA MOTORS CORP.

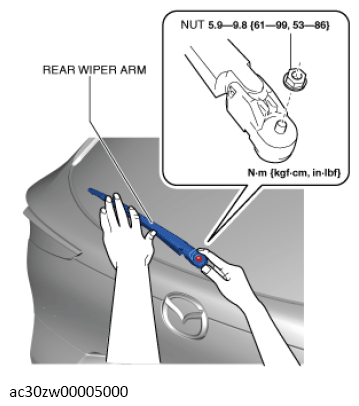

Remove the nut with the rear wiper arm pressed as shown in the illustration.

Fig 1: Rear Wiper Arm And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Raise the rear wiper arm as shown in the illustration and pull out the rear wiper arm from the serrated connecting part. (See REAR WIPER ARM INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT .)
