U.S.A. and CANADA (Charcoal canister (sub)): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the rear tire (RH). (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  3. Remove the rear splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)

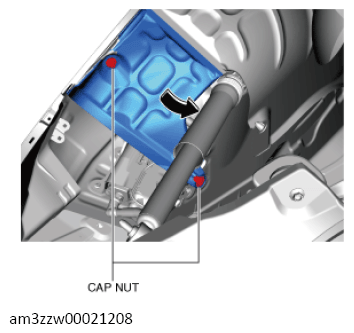

  4. Remove the cap nuts. (See MUDGUARD REMOVAL/INSTALLATION .)
    G13557417Courtesy of MAZDA MOTORS CORP.
  5. Set the rear mudguard (RH) aside. (See MUDGUARD REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.

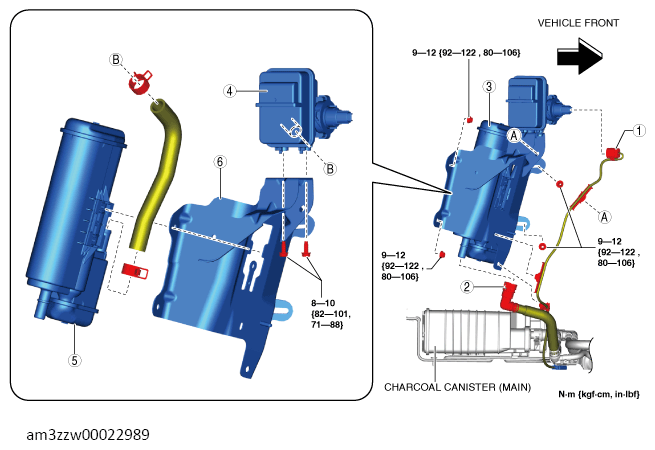

    Fig 1: Charcoal Canister - Sub Components With Torque Specification (U.S.A. And Canada)
    G13557418Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 CV solenoid valve connector
    2 Quick release connector
    (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
    3 Charcoal canister (sub) component
    4 Air filter component
    5 Charcoal canister (sub)
    (See CHARCOAL CANISTER (SUB) REMOVAL NOTE .)
    (See CHARCOAL CANISTER (SUB) INSTALLATION NOTE .)
    6 Charcoal canister (sub) bracket
