Charcoal canister (sub) installation note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily install the charcoal canister (sub) component to the vehicle-side stud bolt.

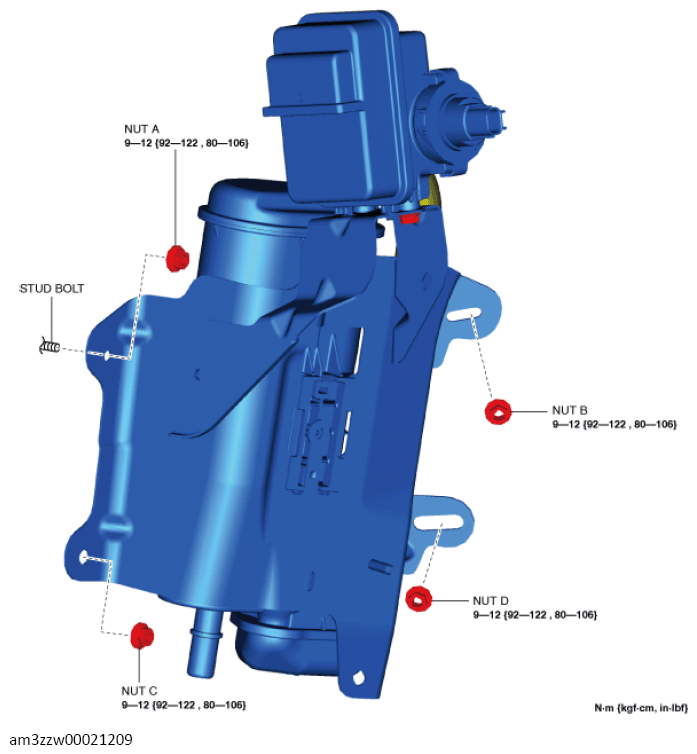

    Fig 1: Charcoal Canister - Sub, Stud Bolt And Nuts With Torque Specification
    G13557420Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten nut A.
  3. Temporarily tighten nut B.
  4. Temporarily tighten nut C.
  5. Temporarily tighten nut D.
  6. Completely tighten nuts A and C.
  7. Completely tighten nuts B and D.
