No. 1 Engine Mount (2WD): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

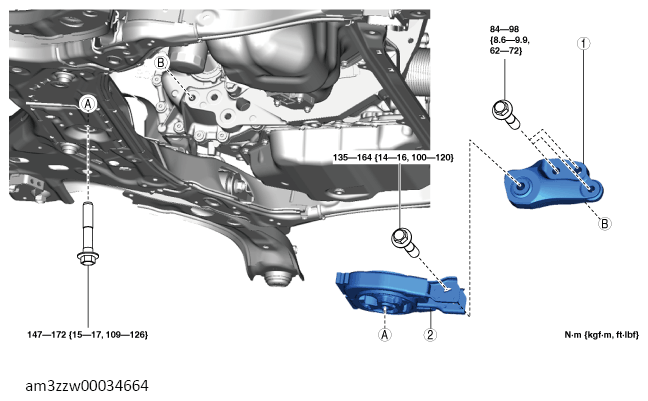

Fig 1: No. 1 Engine Mount Components With Torque Specification (2WD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount bracket (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (2WD) .)
2	No. 1 engine mount rubber (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (2WD) .)
