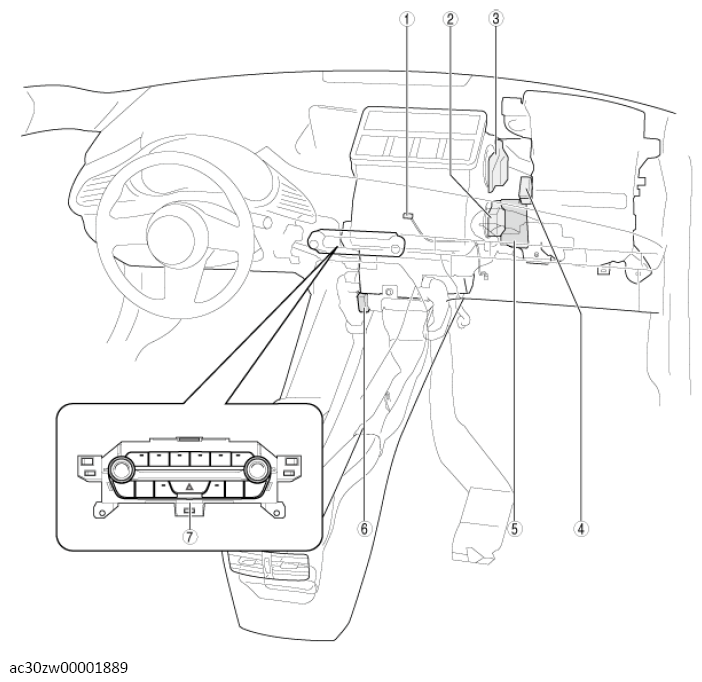

Inside Cabin: L.H.D.

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)) .) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .)
2	Air mix actuator (See AIR MIX ACTUATOR REMOVAL [MANUAL AIR CONDITIONER (US)] .) (See AIR MIX ACTUATOR INSTALLATION [MANUAL AIR CONDITIONER (US)] .) (See AIR MIX ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .)
3	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL [MANUAL AIR CONDITIONER (US)] .) (See AIRFLOW MODE ACTUATOR INSTALLATION [MANUAL AIR CONDITIONER (US)] .) (See AIRFLOW MODE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .)
4	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .) (See AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER] .)
5	Dash-electrical supply unit (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .) (See DASH-ELECTRICAL SUPPLY UNIT INSPECTION [MANUAL AIR CONDITIONER (US)] .)
6	Rear vent actuator (With rear vent)
7	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .) (See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER] .)
