Rear Center Seat Belt Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.
NOTE:
  • The rear center seat belt is building into the rear seat back.
  1. Switch the ignition off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear buckle (LH) (See REAR BUCKLE REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    4. Rear seat back frame (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION .)

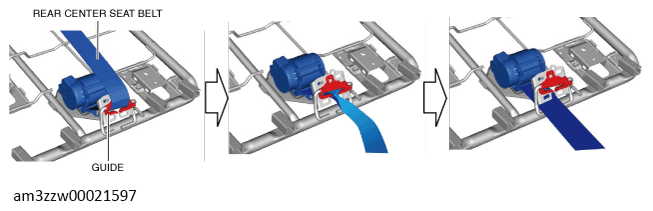

  4. Remove the rear center seat belt from the guide as shown in the illustration.
    G13559552Courtesy of MAZDA MOTORS CORP.
  5. Remove the nuts.

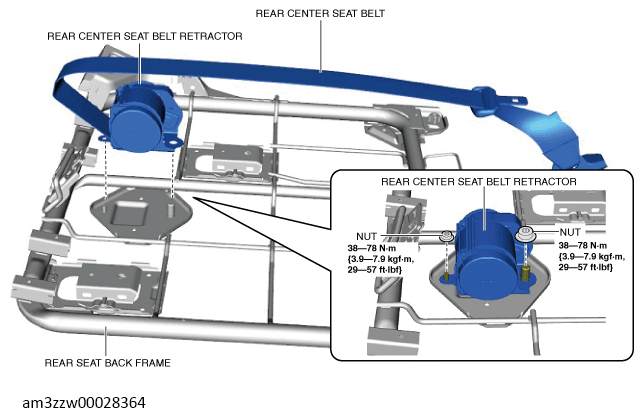

    Fig 1: Rear Center Seat Belt Retractor Nuts With Torque Specification
    G13559553Courtesy of MAZDA MOTORS CORP.
  6. Remove the rear center seat belt retractor from the rear seat back frame.
  7. Remove the rear center seat belt.
  8. Install in the reverse order of removal. (See REAR CENTER SEAT BELT INSTALLATION NOTE .)
