Jack up procedure for all wheels (AWD)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use a low-floor type garage jack. Otherwise, the jack unit may contact the front bumper when it is put under the vehicle.

Set the wheel blocks to the front and back of the rear wheels.

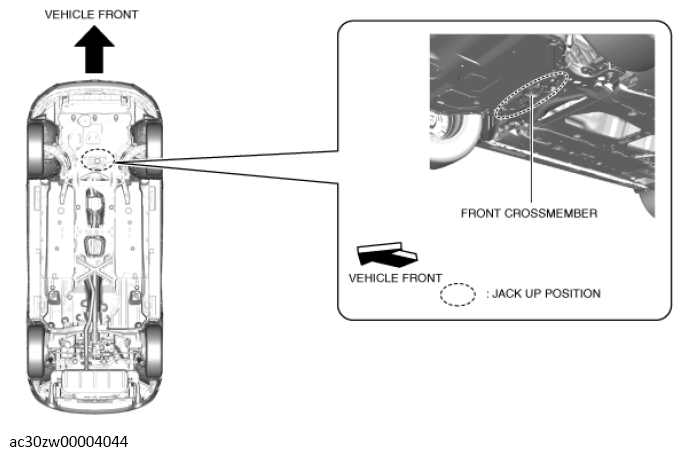

Set the jack to the jack up position of the front crossmember shown in the illustration and jack up a front wheel.

Courtesy of MAZDA MOTORS CORP.

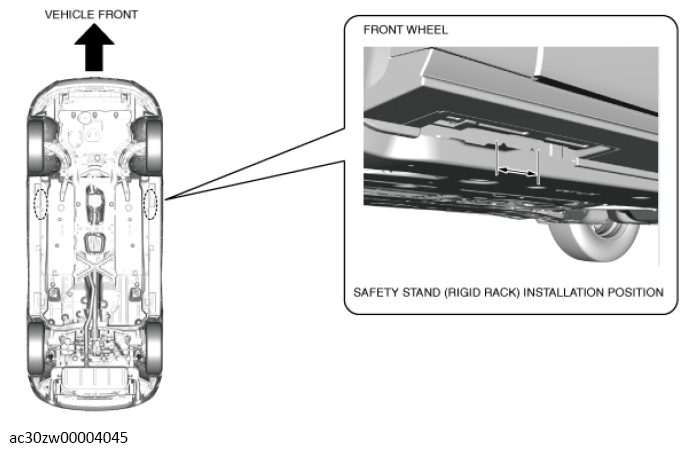

Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the front wheel shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- For AWD vehicles, set the jack to the jack up position of the side sill so that a rear wheel can be jacked up. When the jack cannot be set to the jack up position of the rear differential, refer to the jack up procedure (2WD) for the rear wheel and jack up a rear wheel. (See JACK UP PROCEDURE FOR REAR WHEEL (2WD) )

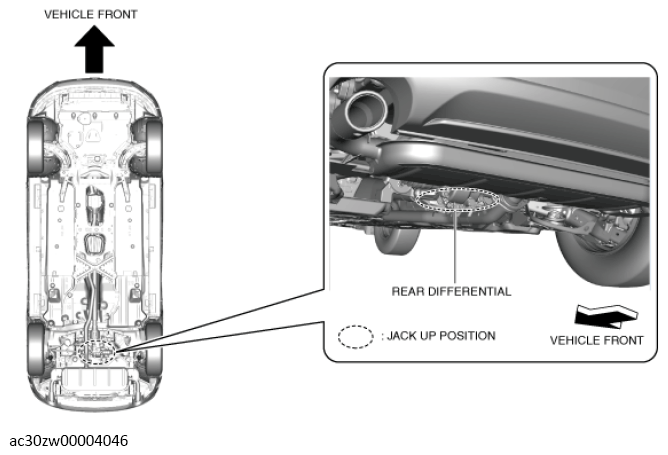

Set the jack to the jack up position of the rear differential shown in the illustration and jack up a rear wheel.

Courtesy of MAZDA MOTORS CORP.

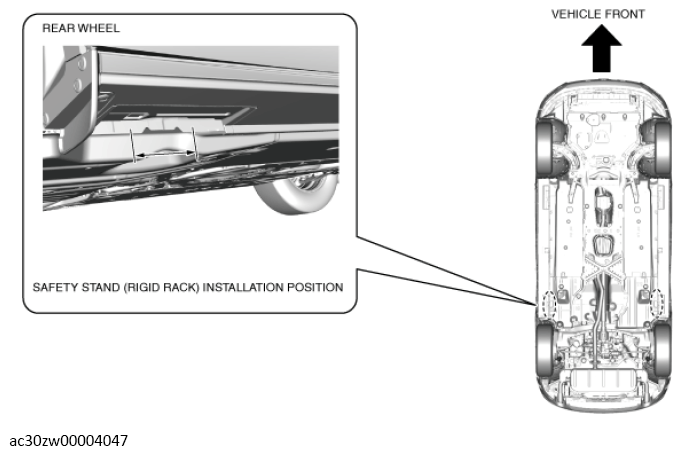

Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position of the rear wheel shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
