Charcoal canister (sub): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the rear tire (RH). (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Remove the rear splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)

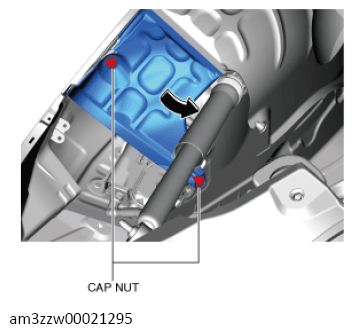

Remove the cap nuts. (See MUDGUARD REMOVAL/INSTALLATION .)

Courtesy of MAZDA MOTORS CORP.
Set the rear mudguard (RH) aside. (See MUDGUARD REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

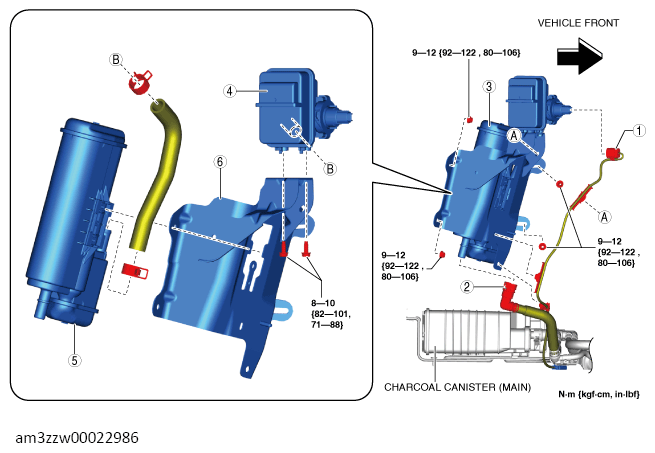

Fig 1: Charcoal Canister - Sub Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	CV solenoid valve connector
2	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
3	Charcoal canister (sub) component
4	Air filter component
5	Charcoal canister (sub) (See CHARCOAL CANISTER (SUB) REMOVAL NOTE .) (See CHARCOAL CANISTER (SUB) INSTALLATION NOTE .)
6	Charcoal canister (sub) bracket
