Charcoal canister (sub) removal note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

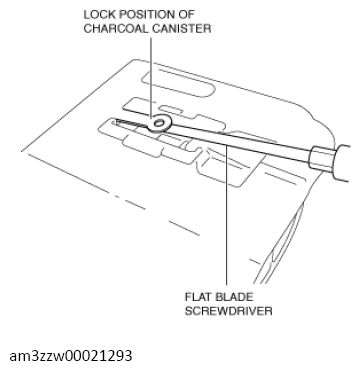

  1. Release the lock as shown in the illustration.
    G13562095Courtesy of MAZDA MOTORS CORP.
  2. Remove the charcoal canister (sub).
