Front pre-tensioner seat belt

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
  2. Pull out the connector stopper plate using a flathead screwdriver.

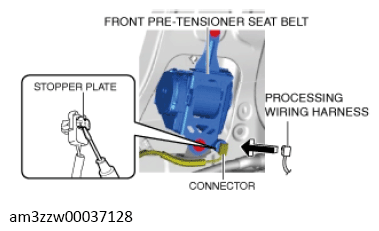

    G13559407Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connector.
  4. Connect the processing wiring harness to the front pre-tensioner seat belt.
  5. Verify that all persons are standing at least 6 m {19 ft} away from the vehicle.
  6. Untwist the processing wiring harness.
  7. Connect the processing wiring harness to the lead-acid battery and activate the inflator.
WARNING:
  • The air bag module is very hot immediately after activation (deployment) and can cause burns if touched. Leave the actuator alone for approx. 15 min or more after activation (deployment) to let it cool down before handling.
