Upper Face Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Replacement part
| Rivet |
| Quantity: 14 |
| Location of use: Upper face |

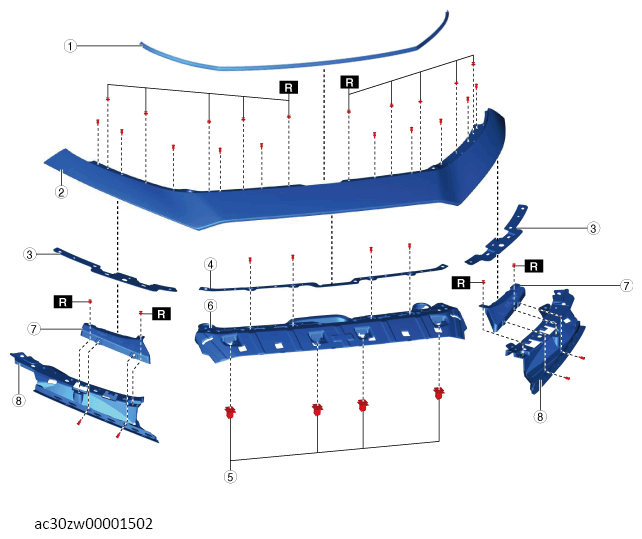

- Disassemble in the order indicated in the table.COMPONENT DESCRIPTION
1 Parting seal weatherstrip 2 Upper grille
(See RIVET REMOVAL NOTE .)3 Set plate A 4 Set plate B 5 Locator pin 6 Bracket A 7 Bracket B
(See RIVET REMOVAL NOTE .)8 Bracket C - Assemble in the reverse order of disassembly.
