Rivet Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If an inappropriate drill diameter is used, the upper face may be damaged.

When removing the rivet, perform the following procedure:

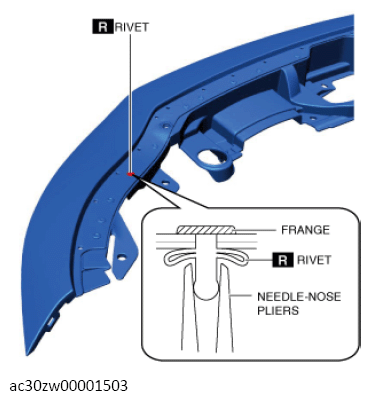

Secure the rivet pin from the upper face inside using needle-nose pliers.

Courtesy of MAZDA MOTORS CORP.

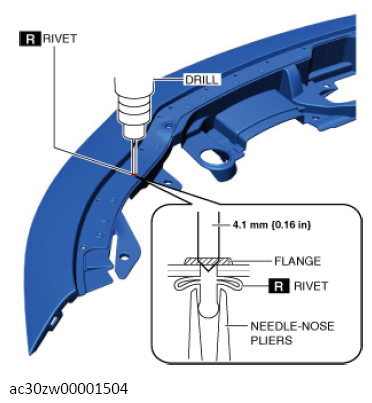

Use the following drill diameter.
Drill diameter: 4. 1 mm {0.16 in}

Remove the rivet flange using a drill and remove the rivet.

Courtesy of MAZDA MOTORS CORP.

Remove any rivet shavings from the upper face.
