Front Deflector

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle.
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove the fasteners and screws.

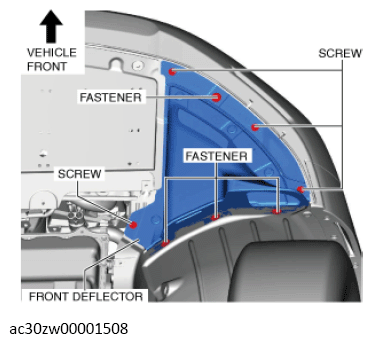

    G13560506Courtesy of MAZDA MOTORS CORP.
  4. Remove the front deflector.
  5. When removing the front deflector No. 2 from front deflector No. 1, perform the following procedure:
    1. Remove the fasteners and clip.

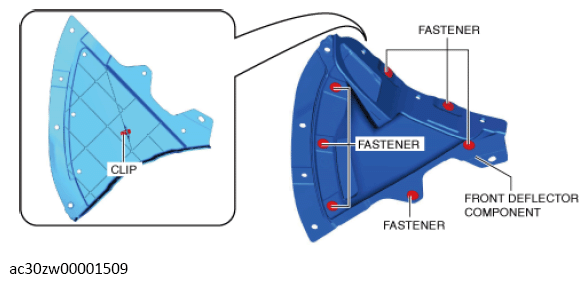

      G13560507Courtesy of MAZDA MOTORS CORP.
    2. Remove the front deflector No. 2 from the front deflector No. 1.

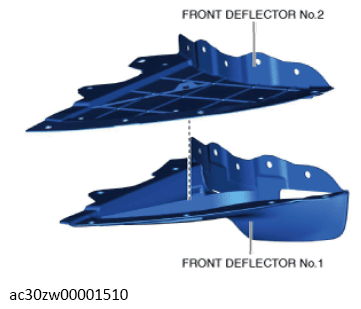

    G13560508Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
