Transfer Removal/Installation [ET6AX-El (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]: Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
| Oil seal Quantity: 1 Location of use: Transfer oil seal (RH) No. 1 |
Oil seal Quantity: 1 Location of use: Transfer oil seal (RH) No. 3 |
CAUTION:
- Performing the following procedures could cause an open circuit in the front ABS wheel speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .)
- Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION (US) .)
- Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION (US) .)
- Remove the exhaust manifold (WU-TWC). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .)
- Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION (US) .)

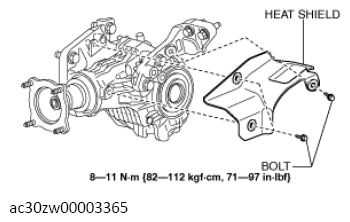

- Remove the heat shield.

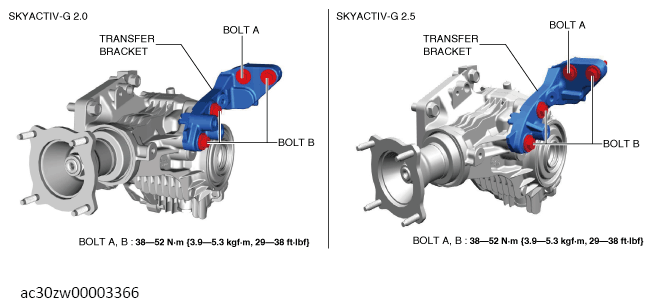

- Remove the transfer bracket. (See TRANSFER BRACKET INSTALLATION NOTE .)
- Drain the transfer oil. (See TRANSFER OIL REPLACEMENT [ET6AX-EL (US)] .)

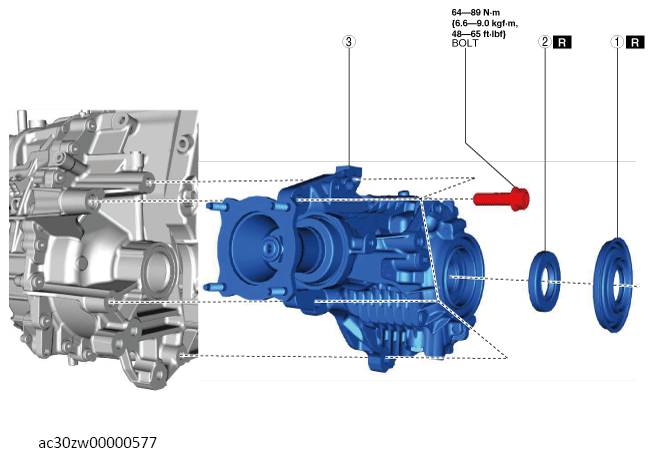

- Remove in the order shown in the illustration.
- Install in the reverse order of removal.
- After the engine and transaxle warms up, inspect for oil leakage and transfer operation.
COMPONENT DESCRIPTION
| 1 | Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL] .) |
| 2 | Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL] .) |
| 3 | Transfer |
