Transfer Location Index [ET6AX-El]

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

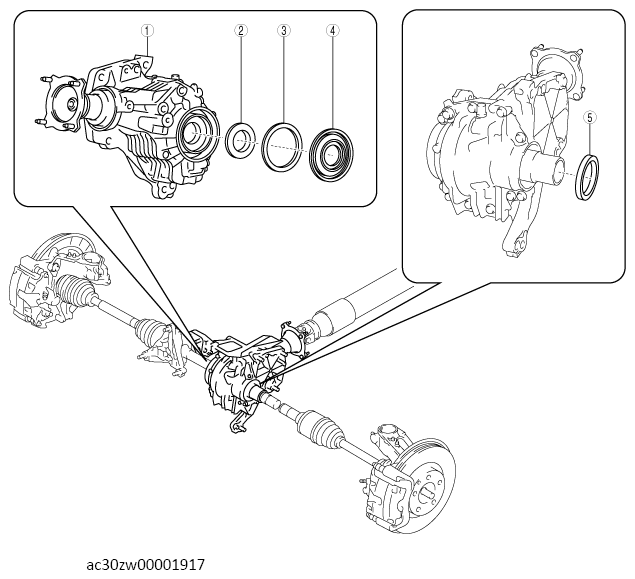

COMPONENT DESCRIPTION

1	Transfer (See TRANSFER OIL INSPECTION [ET6AX-EL (US)] .) (See TRANSFER OIL REPLACEMENT [ET6AX-EL (US)] .) (See TRANSFER REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)] .)
2	Transfer oil seal (RH) No. 3 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL] .)
3	Transfer oil seal (RH) No. 2 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL] .)
4	Transfer oil seal (RH) No. 1 (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL] .)
5	Transfer oil seal (LH) (See TRANSFER OIL SEAL REPLACEMENT [ET6AX-EL] .)
