Rear Drive Shaft Removal/Installation (Us): Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Replacement part
| Locknut Quantity: 1 Location of use: Rear drive shaft |
Rear drive shaft clip Quantity: 1 Location of use: Rear drive shaft |
CAUTION:
- Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
- Do not allow a magnetized tool such as a magnetized screwdriver to come into contact with the ABS sensor rotor. If the ABS sensor rotor becomes magnetized it will be unable to read the ABS wheel speed sensor waveform correctly resulting in an ABS system malfunction to be determined and the inability to perform ABS control. If a magnetized object comes into contact with the ABS sensor rotor, it will be necessary to newly replace the rear drive shaft (ABS sensor rotor).
- Drain the differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Switch the ignition ON (engine off).
- Release the electric parking brake.
- Switch the ignition off while pressing the electric parking brake switch.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Disconnect the electric parking brake motor gear unit connector. (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION .)

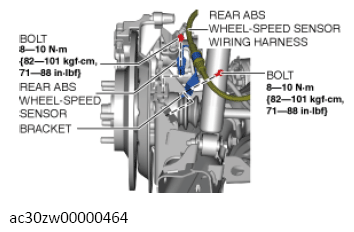

- Remove the rear ABS wheel-speed sensor and the bracket from the wheel hub component.
- Disconnect the rear ABS wheel-speed sensor wiring harness and set it aside so that it does not interfere with the servicing.
- Remove the rear brake caliper component and suspend it out of the way using a cable. (See REAR BRAKE DISC REMOVAL/INSTALLATION (US) .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)

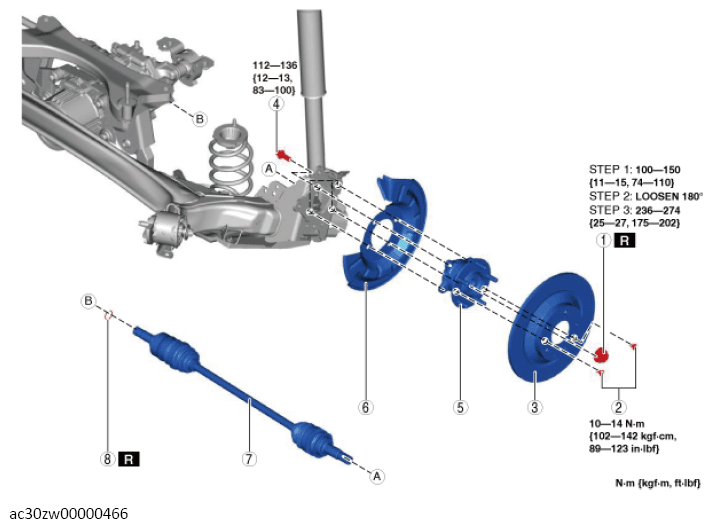

COMPONENT DESCRIPTION
| 1 | Lock nut (See LOCKNUT REMOVAL NOTE .) (See LOCKNUT INSTALLATION NOTE .) |
| 2 | Screw |
| 3 | Rear Disc plate |
| 4 | Bolt (wheel hub component) |
| 5 | Wheel hub component (See WHEEL HUB COMPONENT, REAR DRIVE SHAFT REMOVAL NOTE .) |
| 6 | Dust cover |
| 7 | Rear drive shaft (See WHEEL HUB COMPONENT, REAR DRIVE SHAFT REMOVAL NOTE .) (See REAR DRIVE SHAFT INSTALLATION NOTE .) |
| 8 | Rear drive shaft clip (See REAR DRIVE SHAFT CLIP INSTALLATION NOTE .) |
