Front Drive Shaft Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)

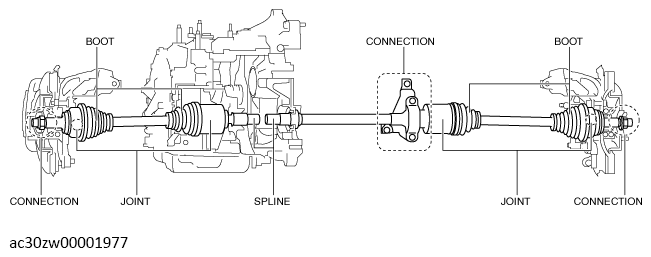

Inspect the connections for any looseness.

Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, tighten or replace the applicable part. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION (US) .)
Inspect the boot for cracks and damage.
- If there is any malfunction, replace the applicable part. (See FRONT DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY (US) .)
Move the spline area and joint area up/down and left/right and inspect for excessive play.
- If there is any malfunction, replace the applicable part. (See FRONT DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY (US) .)
