Driver's Side/Passenger's Side

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    3. Power window sub switch (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    4. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)

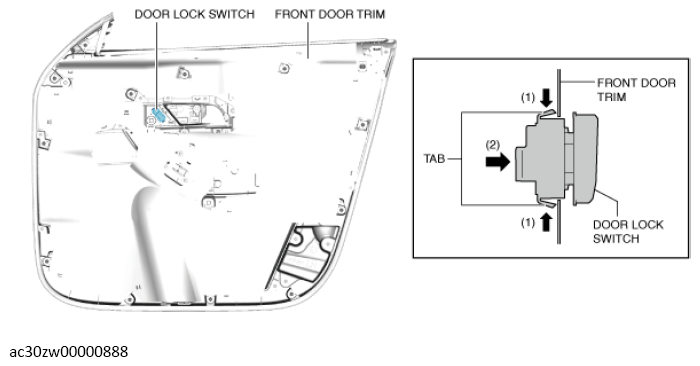

  3. While pressing the tabs of the door lock switch in the direction of arrows (1) shown in the illustration, move the door lock switch in the direction of arrow (2) and detach the tabs of the door lock switch from the front door trim.
    G13560264Courtesy of MAZDA MOTORS CORP.
  4. Remove the door lock switch.
  5. Install in the reverse order of removal.
