Continuity Inspection
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)

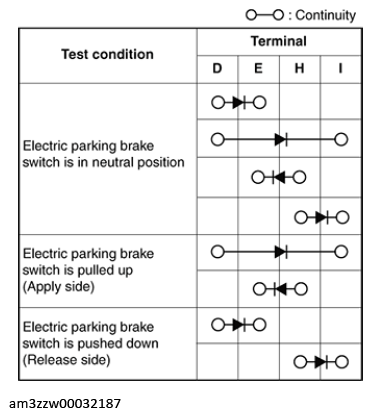

- Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)
