Electric Parking Brake Switch Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the selector lever knob. (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
- Remove the shift lever knob. (MTX)
- Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)

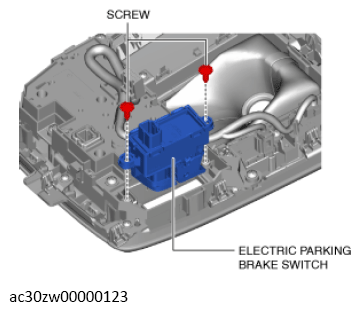

- Remove the screws.
- Remove the electric parking brake switch.
- Install in the reverse order of removal.
- After installation, perform the following procedure.
- Pull up the electric parking brake switch.
- Press the electric parking brake switch.
- Operate the electric parking brake switch again and verify that the electric parking brake operates/releases.
- If the electric parking brake cannot be operated/released, perform a DTC inspection as a malfunction of the electric parking brake may have occurred. (See DTC INSPECTION .)
