Rear Over Fender Bracket Removal/Installation

  1. Remove the rear deflector. (See REAR DEFLECTOR REMOVAL/INSTALLATION .)
  2. Remove the rear over fender. (See REAR OVER FENDER REMOVAL/INSTALLATION .)
  3. Remove the screws.

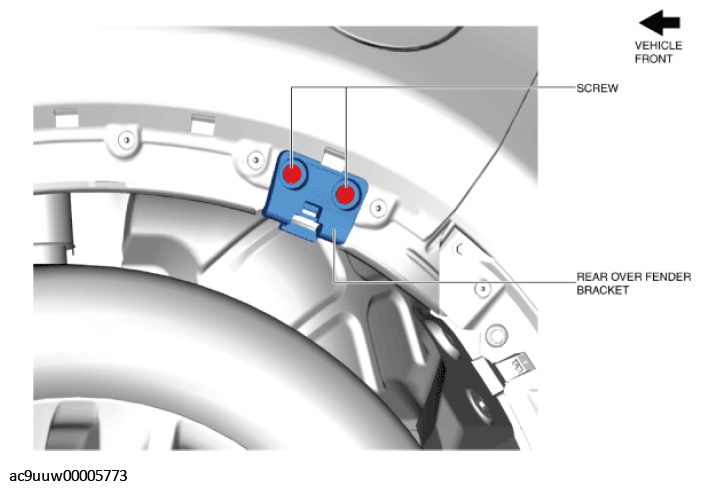

    Fig 1: Rear Over Fender Bracket And Screws
    G11430831Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear over fender bracket.
  5. Install in the reverse order of removal.
