Rear Deflector Removal/Installation

  1. Remove the fasteners.

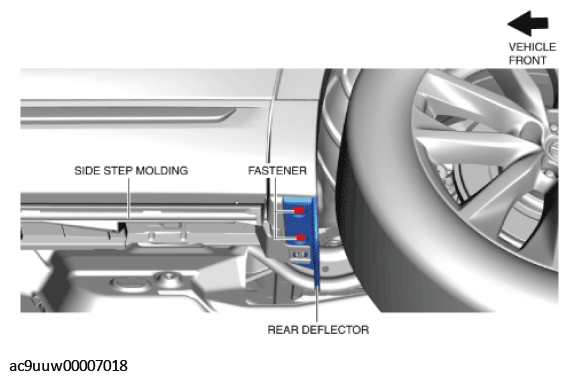

    Fig 1: Removing Rear Deflector Fasteners
    G11431139Courtesy of MAZDA MOTORS CORP.
  2. While pressing the side step molding tabs in the direction of arrows (1) shown in the figure, move the side step molding in the direction of arrow (2) and detach the side step molding from the rear deflector.

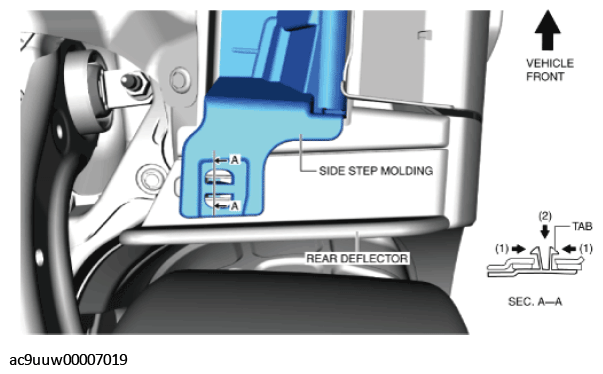

    Fig 2: Pressing Side Step Molding Tabs
    G11431140Courtesy of MAZDA MOTORS CORP.
  3. Remove the fastener.

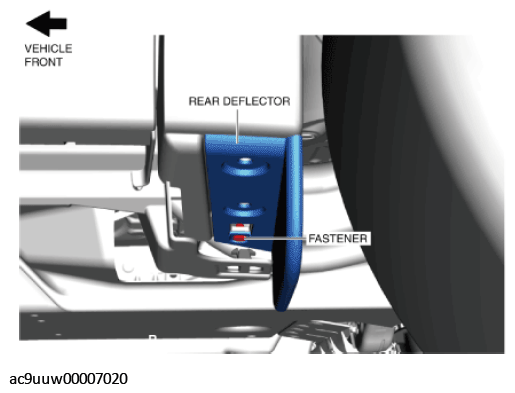

    Fig 3: Removing Rear Deflector Fastener
    G11431141Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear deflector.
  5. Install in the reverse order of removal.
