Antenna Feeder No. 1 Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    3. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    6. Audio tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
  3. Disconnect antenna feeder No. 2.

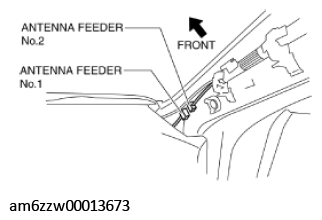

    Fig 1: Disconnecting Antenna Feeder No. 2
    G11430956Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between antenna feeder No. 1 terminals is as indicated in the table.
    Fig 2: Checking Continuity Between Antenna Feeder No. 1 Terminals
    G11430957Courtesy of MAZDA MOTORS CORP.
    Fig 3: Antenna Feeder No. 1 Terminals Continuity Chart
    G11430958Courtesy of MAZDA MOTORS CORP.
