Between Intake Manifold and Vacuum Pump

  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
  2. Pinch open the clamps using pliers and disconnect the vacuum hoses.

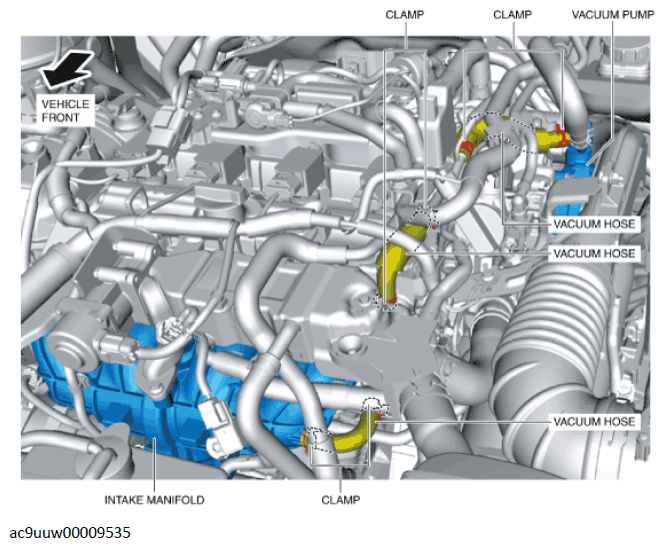

    Fig 1: Locating Vacuum Hose
    G11433087Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal. (See VACUUM HOSE (BETWEEN INTAKE MANIFOLD AND VACUUM PUMP) INSTALLATION NOTE .)
