Vacuum hose (between intake manifold and vacuum pump) installation note

  1. Install the vacuum hose (between intake manifold and vacuum pump) as shown in the figure.

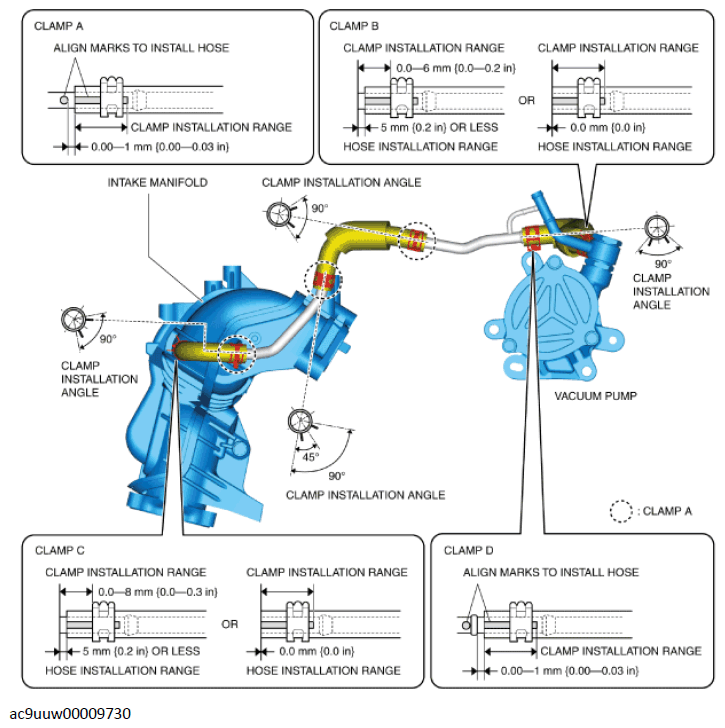

Fig 1: Showing Clamp Installation Dimensions
G11433088Courtesy of MAZDA MOTORS CORP.
