Front Door Sash Film

  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    2. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)

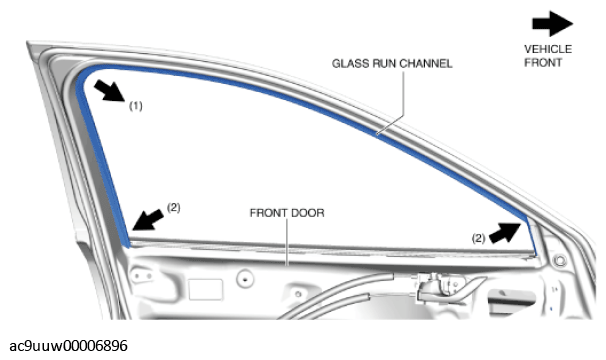

  4. Pull the weatherstrip in the direction of arrow (1) shown in the figure and peel back the glass run channel to the positions of arrows (2).
    Fig 1: Pulling Front Door Weatherstrip
    G11431069Courtesy of MAZDA MOTORS CORP.

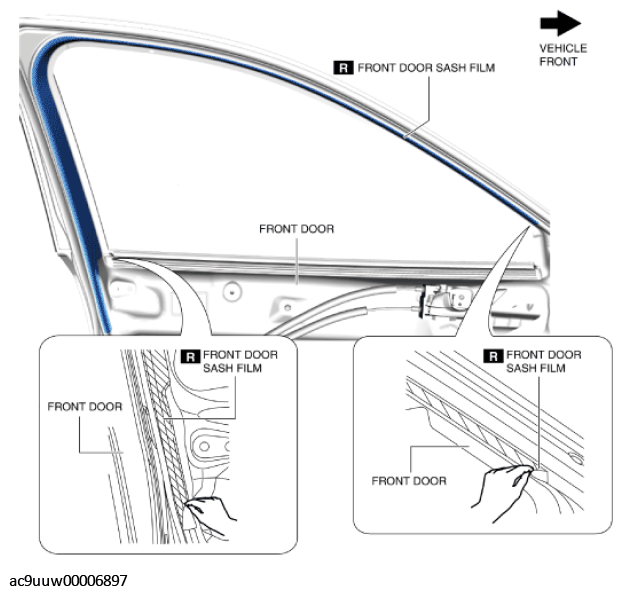

  5. Peel off the front door sash film by pulling it outward from one end.
    Fig 2: Peeling Front Door Sash Film
    G11431070Courtesy of MAZDA MOTORS CORP.
