Front Door Trim Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

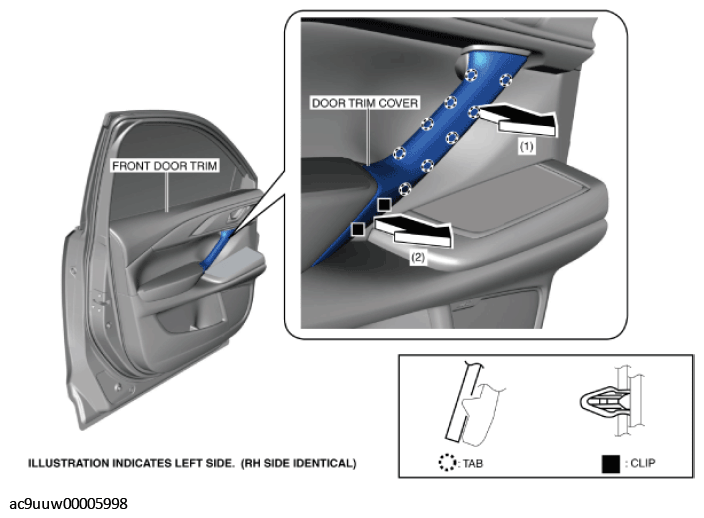

Remove the door trim cover in the direction of the arrow in the order of (1), (2) while detaching the tabs, clips.

Fig 1: Removing Door Trim Cover
Courtesy of MAZDA MOTORS CORP.

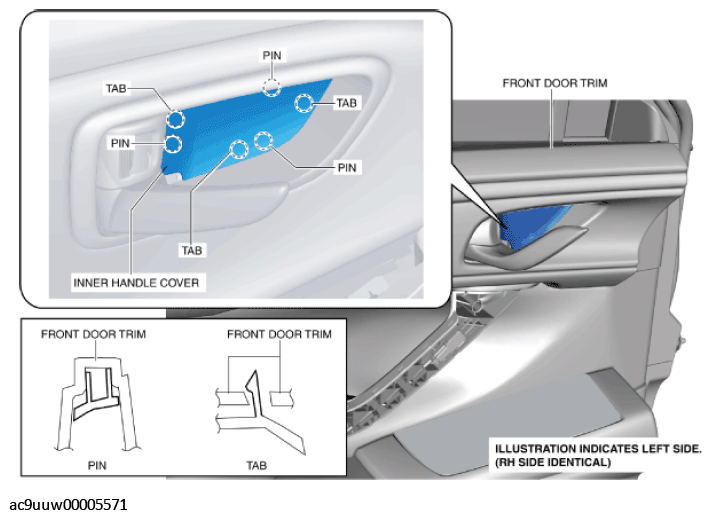

Remove the inner handle cover while detach tabs, pins.

Fig 2: Inner Handle Cover, Front Door Trim, Tabs And Pins
Courtesy of MAZDA MOTORS CORP.

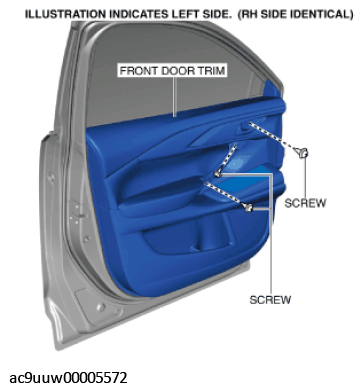

Remove the screws.

Fig 3: Front Door Trim And Screws
Courtesy of MAZDA MOTORS CORP.

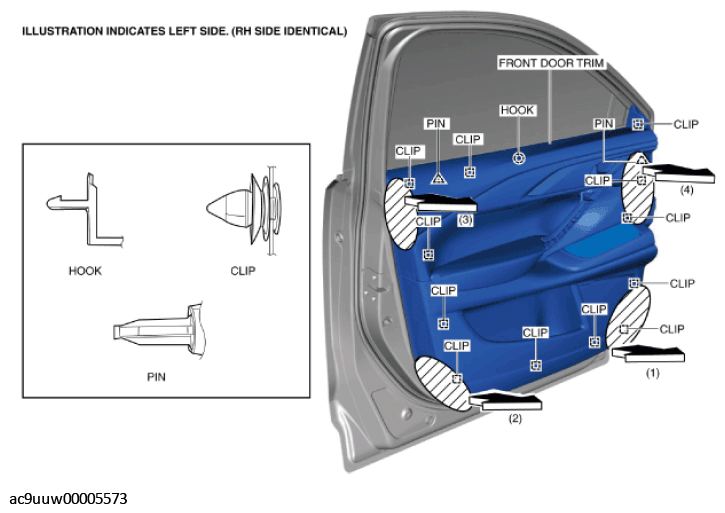

Grasp the shaded area shown in the figure, and pull the front door trim in the direction of the arrow in the order of (1), (2), (3), (4) while detaching clips, hook and pins.

Fig 4: Pulling Front Door Trim
Courtesy of MAZDA MOTORS CORP.

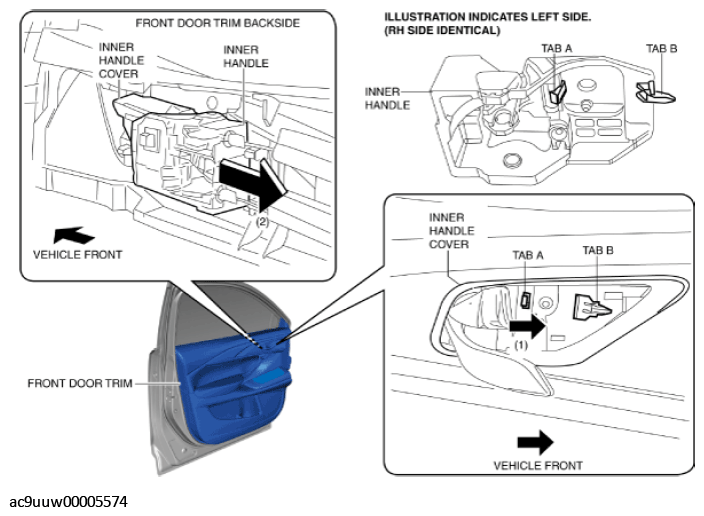

Remove the tab A in the direction of the arrow (1) shown in the figure.

Fig 5: Removing Inner Handle
Courtesy of MAZDA MOTORS CORP.
Remove the inner handle in the direction of the arrow (2) shown in the figure while detaching tab B.
Disconnect the power window main switch connector (driver-side) or power window subswitch connector (passenger-side).
Install in the reverse order of removal.
