Front Door Garnish Removal

  1. Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION .)
  2. Remove the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)

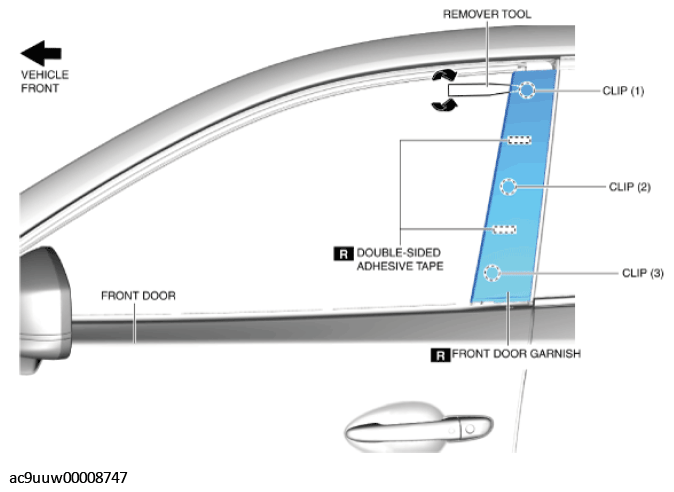

  3. Move the remover tool in the direction of the arrow shown in the figure and while peeling off the double-sided adhesive tape, detach the front door garnish clips (1), (2) and (3) from the front door starting from the top of the vehicle.
    Fig 1: Moving Remover Tool
    G11431092Courtesy of MAZDA MOTORS CORP.

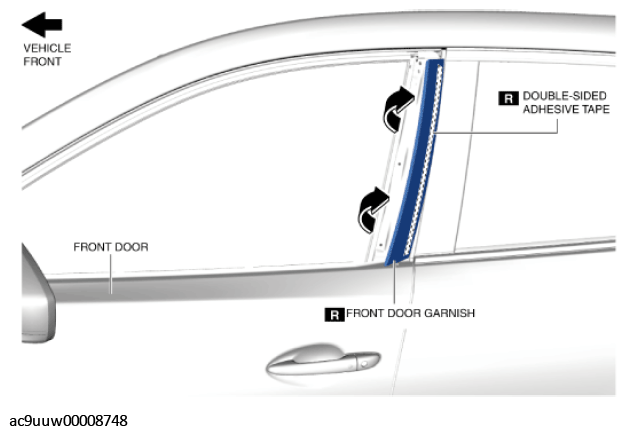

  4. Move the front door garnish in the direction of the arrows shown in the figure and peel off the double-sided adhesive tape.
    Fig 2: Moving Front Door Garnish
    G11431093Courtesy of MAZDA MOTORS CORP.
  5. Remove the front door garnish.
