Front BELTLINE Molding Removal/Installation

Fully open the front door glass.
Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION .)

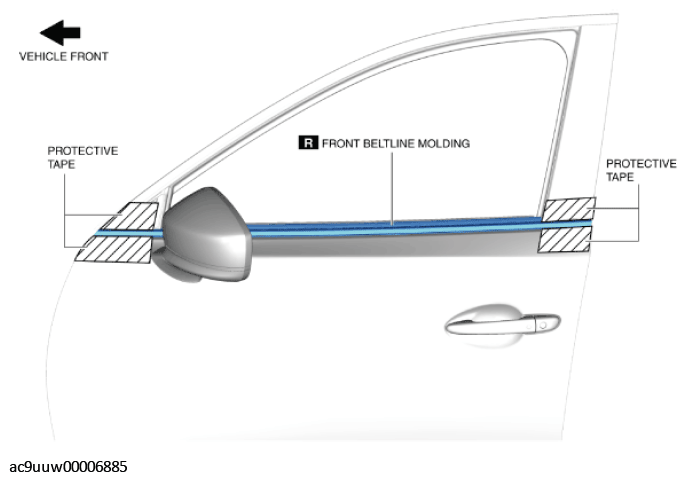

Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Fig 1: Affixing Protective Tape
Courtesy of MAZDA MOTORS CORP.

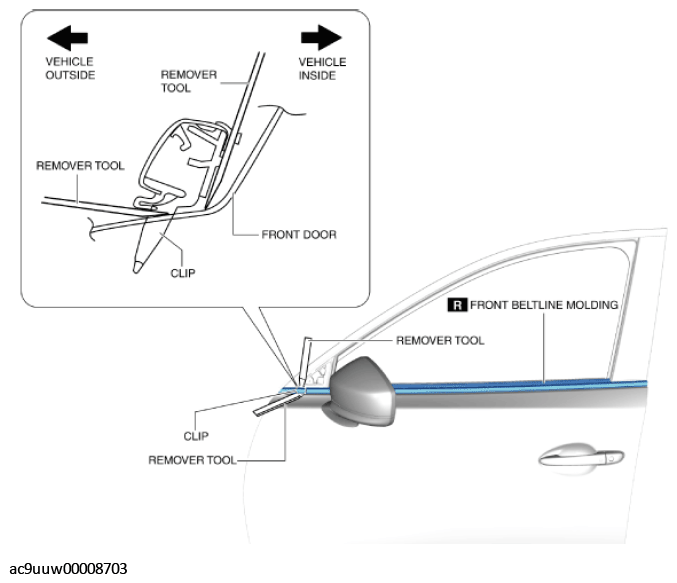

Insert remover tools into the position shown in the figure, and detach the front beltline molding clip from the front door.

Fig 2: Detaching Front Beltline Molding Clip
Courtesy of MAZDA MOTORS CORP.

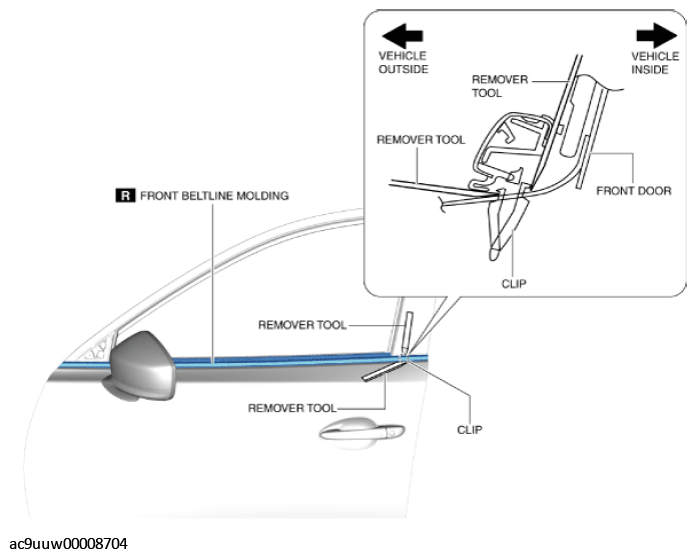

Insert remover tools into the position shown in the figure, and detach the front beltline molding clip from the front door.

Fig 3: Inserting Remover Tools
Courtesy of MAZDA MOTORS CORP.

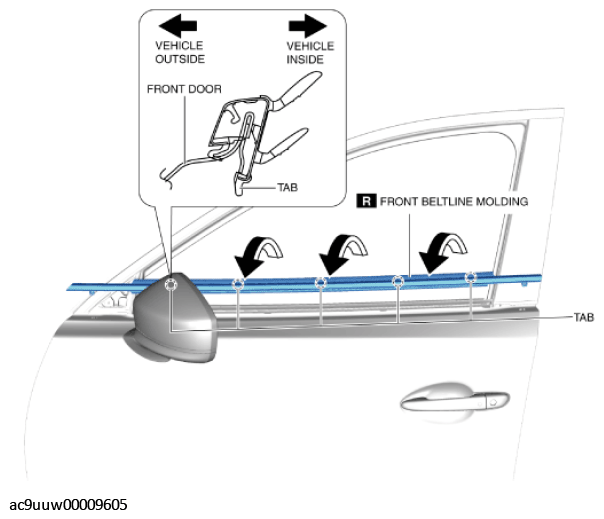

Rotate the front beltline molding in the direction of the arrows shown in the figure and detach the front beltline molding tabs from the front door.

Fig 4: Rotating Front Beltline Molding
Courtesy of MAZDA MOTORS CORP.
Remove the front beltline molding.
Install in the reverse order of removal.
