Crankshaft Pulley Lock Bolt Disassembly Note

  1. Hold the crankshaft using the SST  .
  2. Remove the crankshaft pulley lock bolt.

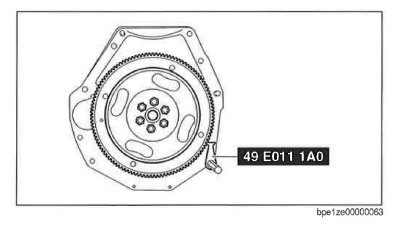

    Fig 1: Flywheel Lock Bolt
    G09757169Courtesy of MAZDA MOTORS CORP.
