Seat Belt Location Index

Structural View

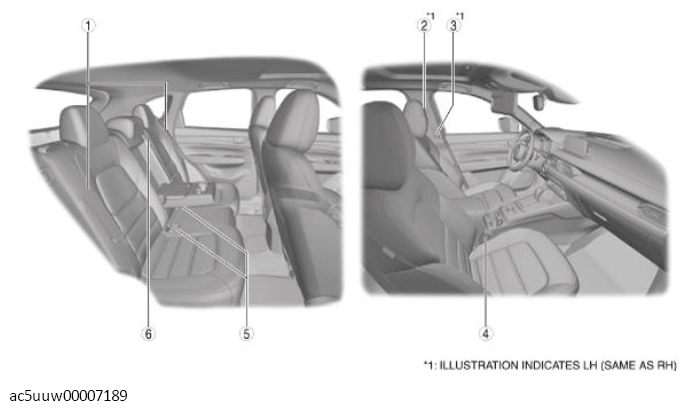

Fig 1: Seat Belt Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .)
2	Adjuster anchor (See ADJUSTER ANCHOR REMOVAL/INSTALLATION .)
3	Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .)
4	Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION .)
5	Rear buckle (See REAR BUCKLE REMOVAL/INSTALLATION .)
6	Rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
