Rear Seat Belt Removal/Installation

CAUTION:
  • If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.
  1. Switch the ignition to off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    2. Bass-box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    3. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    7. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    8. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  4. Remove the bolts.

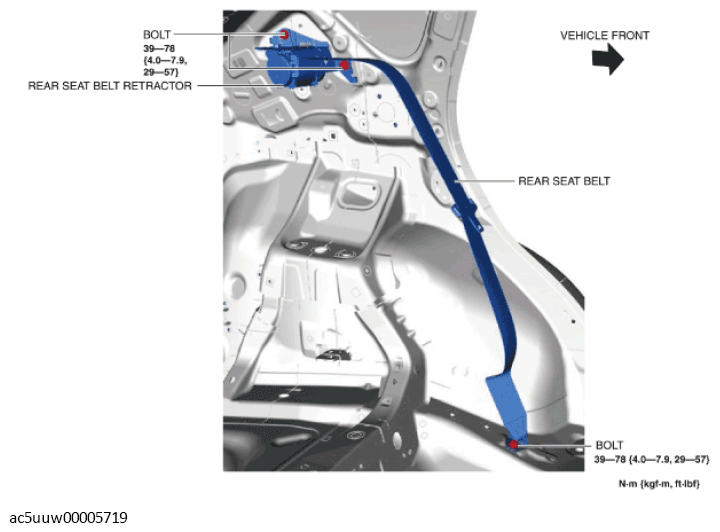

    Fig 1: Rear Seat Belt, Rear Seat Belt Retractor And Bolts With Tightening Torque
    G11428676Courtesy of MAZDA MOTORS CORP.
  5. Move the rear seat belt retractor in the order of arrows (1) and (2) shown in the figure, and remove it from the body.

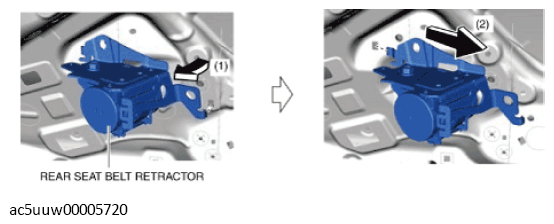

    Fig 2: Moving Rear Seat Belt Retractor
    G11428677Courtesy of MAZDA MOTORS CORP.
  6. Remove the rear seat belt.
  7. Install in the reverse order of removal.
