Coupling Component Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Oil and Chemical Type

Sealant

Type: TB1217C or equivalent

CAUTION:
  • If the characteristic value of a new coupling component is not input to the AWD control module or the characteristic value is input incorrectly after replacing the coupling component, it could result in the following conditions:
    • The system does not operate normally.
    • A problem with durability of the coupling component occurs.
  • After replacing the coupling component, read out the characteristic value of a new coupling component and write it to the AWD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
  • Read out the characteristic value of the coupling component from the label or mark shown in the figure.
    Fig 1: Reading Out Characteristic Value Of Coupling Component From Label Or Mark
    G11427042Courtesy of MAZDA MOTORS CORP.
NOTE:
  • The AWD control module stores the characteristic value of the coupling component before replacement.
  • If the characteristic value of a new coupling component is not written, the AWD control module does not store the value.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Drain the rear differential oil into a container.
  3. Remove the following parts:
    1. Remove the floor under cover No. 1. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
    2. Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
    3. Remove the insulator (exhaust system). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
    4. Remove the tunnel member. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .
    5. Remove the brace bar. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .
  4. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.
  7. Add rear differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)
  8. If the coupling component is replaced, write the characteristic value of a new coupling component to the AWD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)

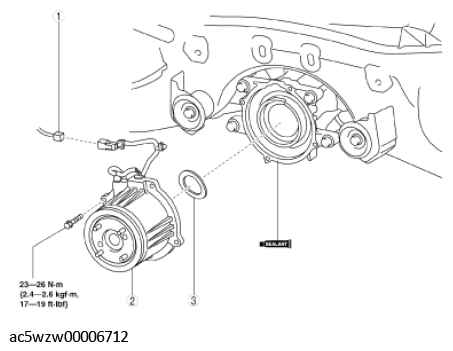

    Fig 2: Removing/Installing Coupling Component
    G11427043Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 AWD solenoid connector
    2 Coupling component
    (See Coupling Component Removal Note .)
    (See Coupling Component Installation Note .)
    3 Washer
