Rear Differential Mount Rubber Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)

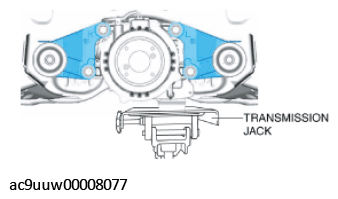

Support the rear differential component using a transmission jack.

Fig 1: Supporting Rear Differential Component Using Transmission Jack
Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the rear crossmember and rear differential mount rubber as shown in the figure.

Fig 2: Placing Alignment Marks On Rear Crossmember And Rear Differential Mount Rubber
Courtesy of MAZDA MOTORS CORP.
Remove the rear differential mount rubber.

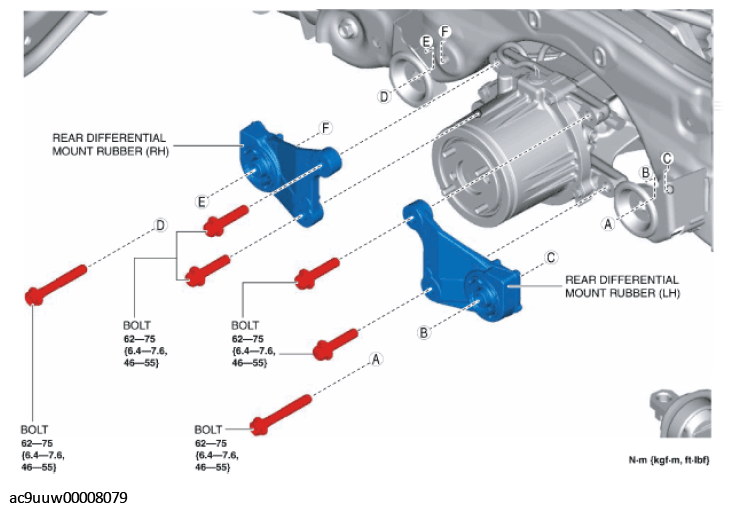

Fig 3: Removing Rear Differential Mount Rubber
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See REAR DIFFERENTIAL MOUNT RUBBER, BOLT INSTALLATION NOTE .)
