Rear Heat Duct Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Slide the front seat rearward.
  3. Remove the fastener.
    Fig 1: Removing Rear Heat Duct Components
    G11529277Courtesy of MAZDA MOTORS CORP.
  4. Remove the following parts:
    1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    5. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    6. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
  5. Turn the floor covering over.
  6. Remove in the order indicated in the table.

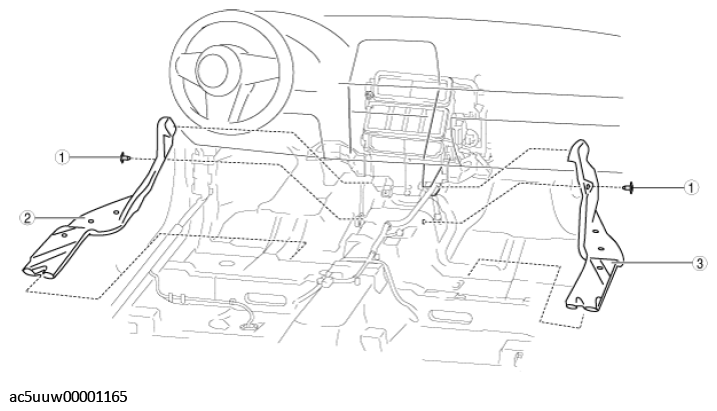

    Fig 2: Removing Rear Heat Duct And Fastener
    G11529278Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fastener
    2 Rear heat duct (1)
    3 Rear heat duct (2)
  7. Install in the reverse order of removal.
