Magnetic Clutch is Disassembled/Assembled with A/C Compressor Removed from Vehicle: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Discharge the refrigerant. (See REFRIGERANT CHARGING .)
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
Remove the A/C compressor. (See A/C COMPRESSOR REMOVAL/INSTALLATION .)

Disassemble in the order indicated in the table.

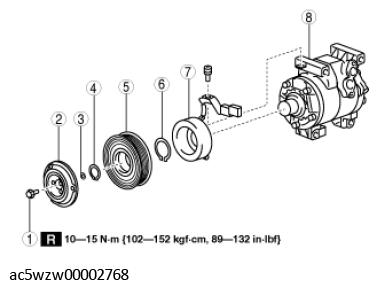

Fig 1: Disassembled/Assembled View Of Magnetic Clutch

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt (See Bolt removal/installation note .)
2	Pressure plate
3	Shim
4	Snap ring (See Snap ring removal/installation note .)
5	A/C compressor pulley
6	Snap ring (See Snap ring removal/installation note .)
7	Stator
8	A/C compressor body

Assemble in the reverse order of disassembly.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
