Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
Disconnect the high-mount brake light connector and remove the wiring harness from the hook.

Fig 1: Locating High-Mount Brake Light Connector
Courtesy of MAZDA MOTORS CORP.
Remove the caps and nuts shown in the figure.

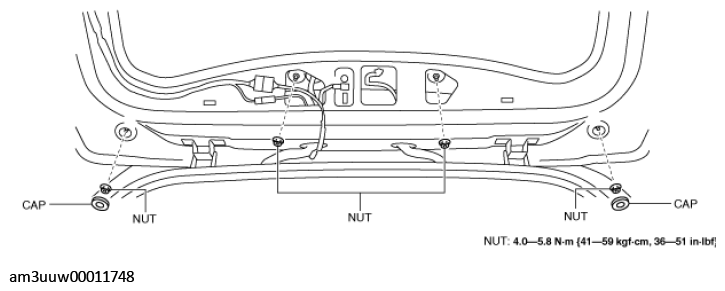

Fig 2: Removing Rear Spoiler Cap And Nut
Courtesy of MAZDA MOTORS CORP.
Insert a remover tool in the position shown in the figure.

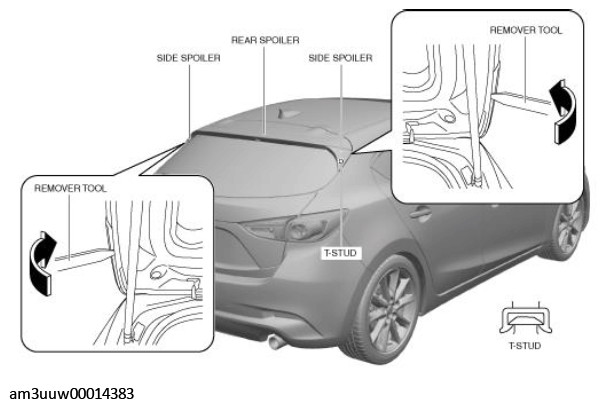

Fig 3: Inserting Remover Tool On Side Spoiler
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and disengage the side spoilers from the liftgate T-studs.
Insert a remover tool in the position shown in the figure.

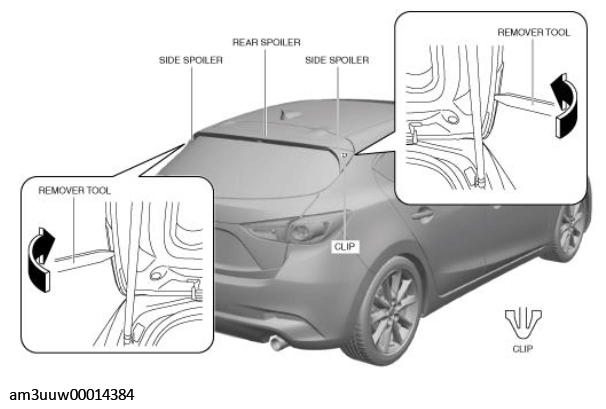

Fig 4: Inserting Remover Tool On Side Spoiler
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and disengage the side spoiler clip from the liftgate.
Pull the rear spoiler in the direction of the arrows and remove it while detaching the pins.

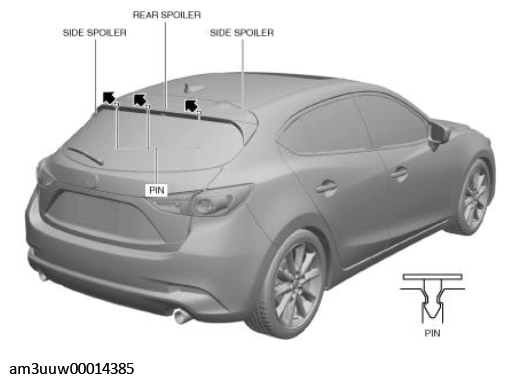

Fig 5: Pulling Rear Spoiler
Courtesy of MAZDA MOTORS CORP.
While holding the rear spoiler by hand, press the tabs of the grommet from the underside of the liftgate shown in the figure, and disengage the grommet tabs from the liftgate.

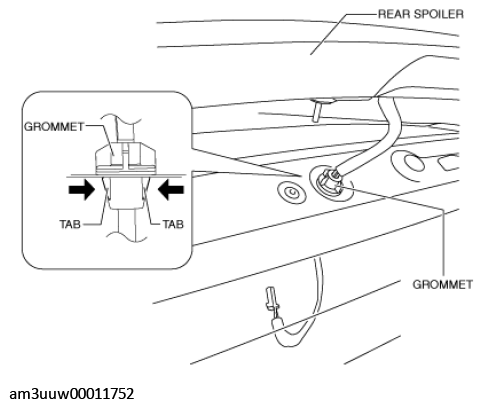

Fig 6: Locating Rear Spoiler Grommet
Courtesy of MAZDA MOTORS CORP.
Remove the rear spoiler while pulling out the wiring harness.
Insert a remover tool into the position shown in the figure, move it in the direction of the arrow shown in the figure, and remove the side spoiler from the rear spoiler.

Fig 7: Locating Side Spoiler

Courtesy of MAZDA MOTORS CORP.
