Sedan (4SD)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When a rear spoiler is to be reused, perform the following procedure:
1. Remove the packing and double-sided adhesive tape remaining on the rear spoiler after removal.
2. Remove any grease and dirt from the packing and double-sided adhesive tape affixing area.

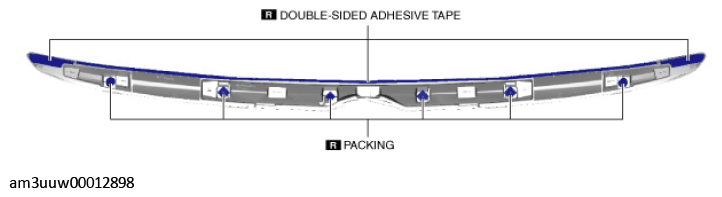

3. Affix a new packing and new double-sided adhesive tape to the position shown in the figure.

  Fig 1: Rear Spoiler Double-Sided Adhesive Tape Packing
  Courtesy of MAZDA MOTORS CORP.

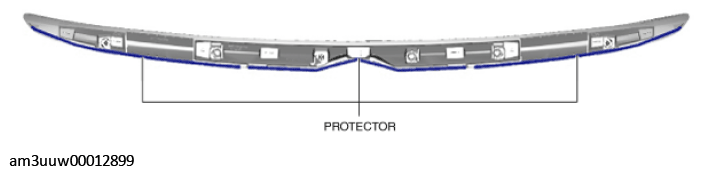

4. If the protector is damaged, replace the part that is damaged with a new protector.
Fig 2: Locating Protector On Rear Spoiler
Courtesy of MAZDA MOTORS CORP.

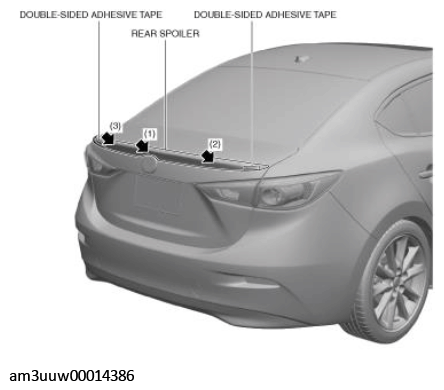

Peel off the paper backing from the double-sided adhesive tape and install the rear spoiler clips in the order of arrows (1), (2), and (3) shown in the figure.

Fig 3: Locating Rear Spoiler Double Sided Adhesive Tape
Courtesy of MAZDA MOTORS CORP.

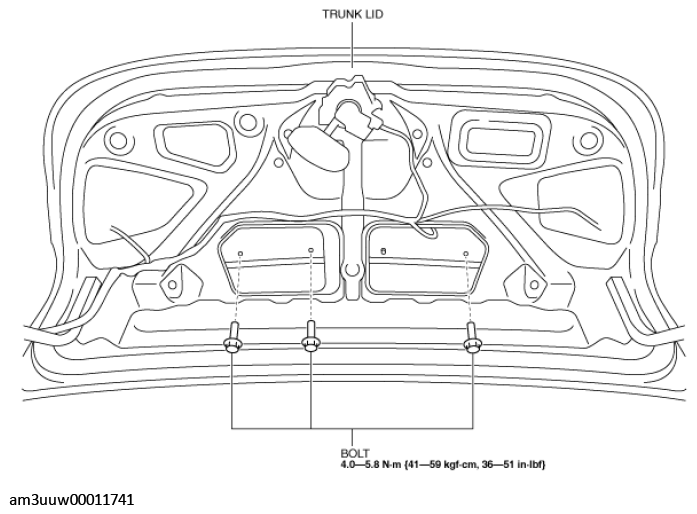

Install the bolts shown in the figure.

Fig 4: Installing Trunk Lid Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
Install the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
